Description

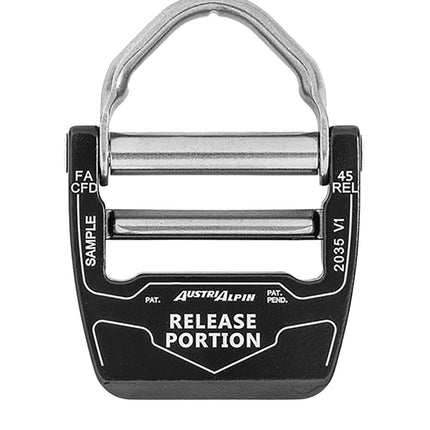

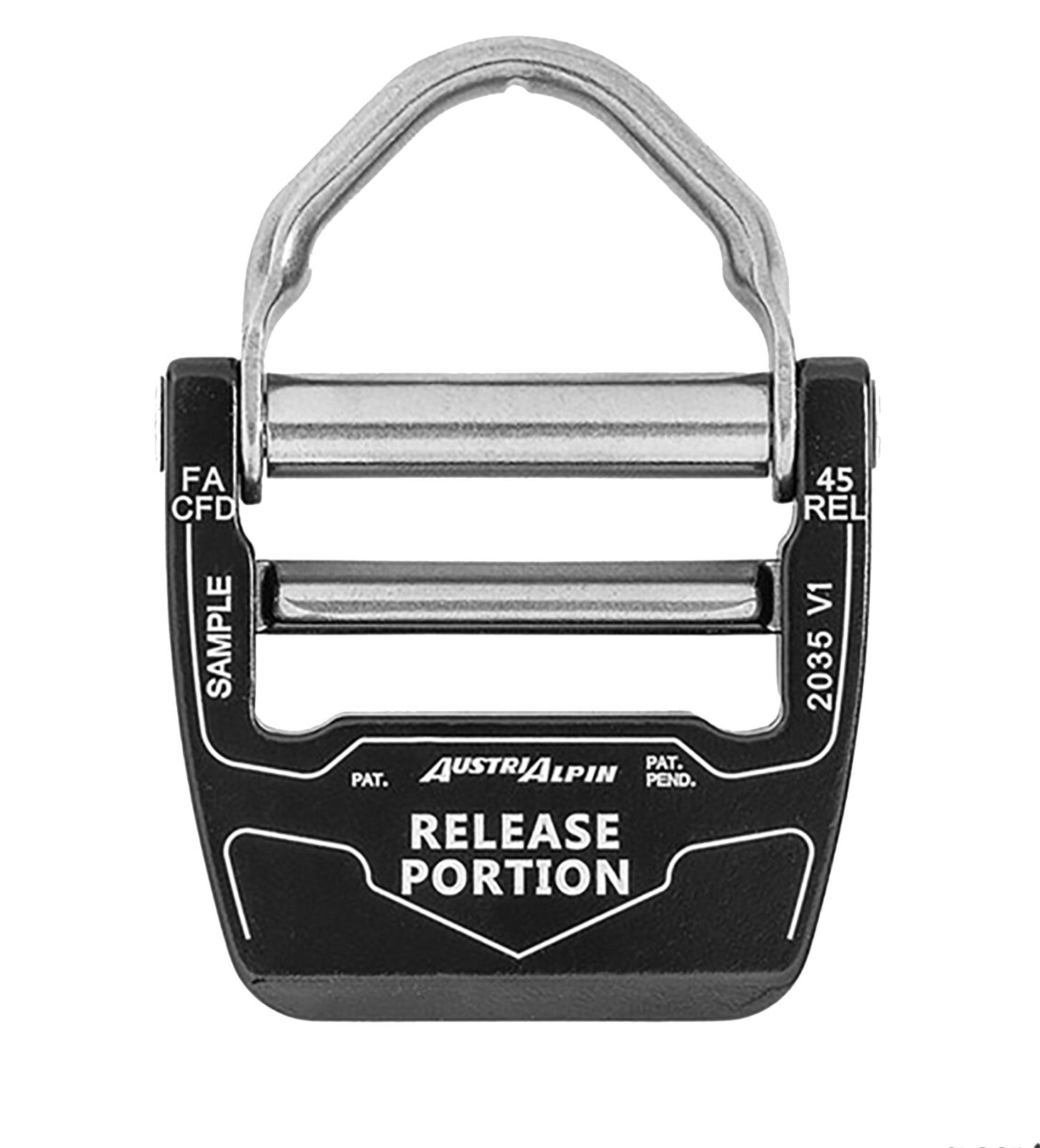

Engineered to meet the stringent safety requirements of fall protection, tactical rigging, and professional Personal Protective Equipment (PPE), the AustriAlpin ANSI COBRAFRAME Release with Integrated D-Ring combines a heavy-duty slide buckle frame with a drop-forged steel tie-off D-ring in a single unified design. Precision-manufactured in Austria from high-strength 7075 aluminum and stainless/forged steel components, this non-detachable buckle features a specialized quick-release lever mechanism for rapid tension adjustment under load. Designed specifically for 45 mm (1.75") tactical webbing, the integrated D-ring provides a rated attachment point for lanyards, carabiners, and fall-arrest gear, fully complying with rigorous ANSI Z359.12 safety standards.
How To Use
-
Webbing & Harness Threading: Permanently stitch the main harness/belt webbing to the lower anchor slot, then thread the adjustment webbing end through the release friction bar according to standard thread-back procedure.
-
D-Ring Attachment: Clip certified carabiners, lanyards, or fall-arrest hooks directly into the forged steel D-ring eyelet for secure anchor points.
-
Tension Adjustment & Release: Pull the free webbing tail outward to tighten. Lift or tilt the extended release tab to disengage friction and slide the belt to loosen.
-
Maintenance & Inspection: Inspect the D-ring and frame for physical wear or distortion prior to every load-bearing use. Keep sliding channels clear of dirt, sand, and debris.
